SCR EC Power Supply

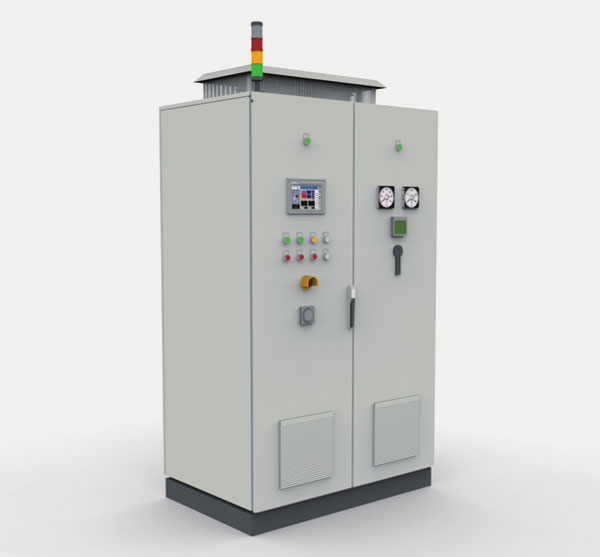

Product Name:Electrophoretic Coating Power Supply

Views:


Prev:Electrophoretic Coating Power Supply   Next:Electrophoretic Coating Power Supply

Certified Product

Product Details

Performance indexes

■ Input voltage: 380V/50HZ
■ Output pulse: 12 pulses
■ Control mode: voltage phase control
■ Stabilized voltage precision: ≤ 0.5%
■ Ripple factor: ≤ 3%
■ Level of protection: IP54


Customized service items

■ Coating color: RAL7035 by default
■ Single/Double control system
■ Host computer and software
■ Multi-position electrophoresis



No. Maximum reference electrophoresis area Specification Capacity / kva Weight / kg
 1 16m² HYK22- 200A 300V 72 660~678
*350V 84
400V 96
20m² *HYK22- 250A 300V 90 673~710
*350V 105
400V 120
25m² HYK22- 315A 300V 113.4 810~840
*350V 132.3
400V 151.2
 4 29m² *HYK22- 350A 300V 126 945~961
*350V 147
400V 168
 5 33m² HYK22- 400A 300V 144 952~1018
*350V 168
400V 192
 6 42m² HYK22- 500A 300V 180 1020~1100
*350V 210
400V 240

* Represents non-priority value.
The weight is calculated value, is deviated from the actual value, and is for reference only.

Model Definition

H Y K 2 2 - Current / Voltage
HongCheng Electrophoretic coating power supply K:SCR
G:IGBT
1:Single control
2:Double control
1:LCD display / 485 Net work
2:Touch screen / Custome
  Rated DC current   Rated DC voltage
